1.Product Name

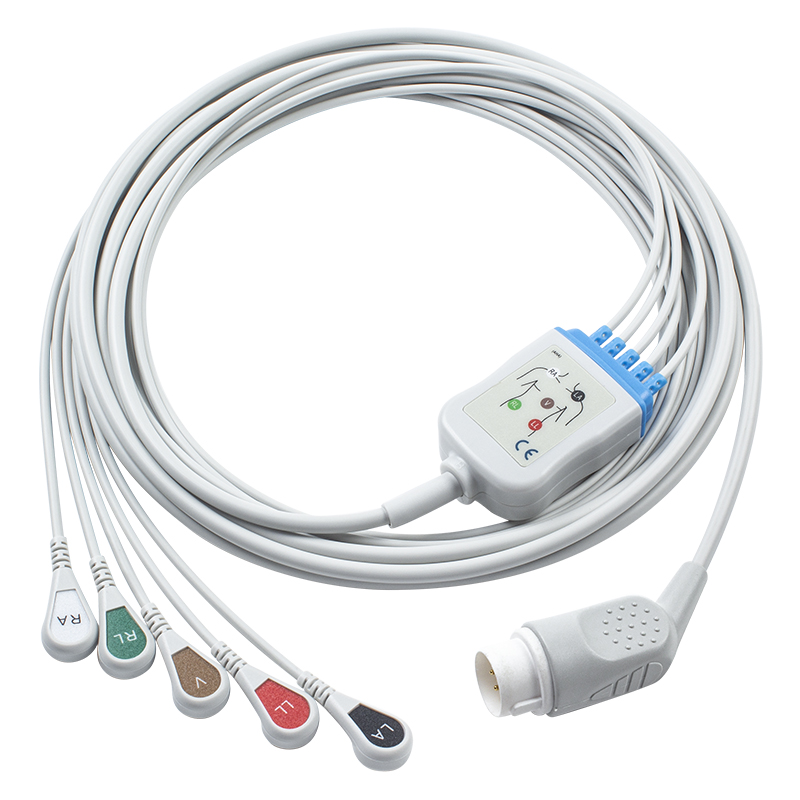

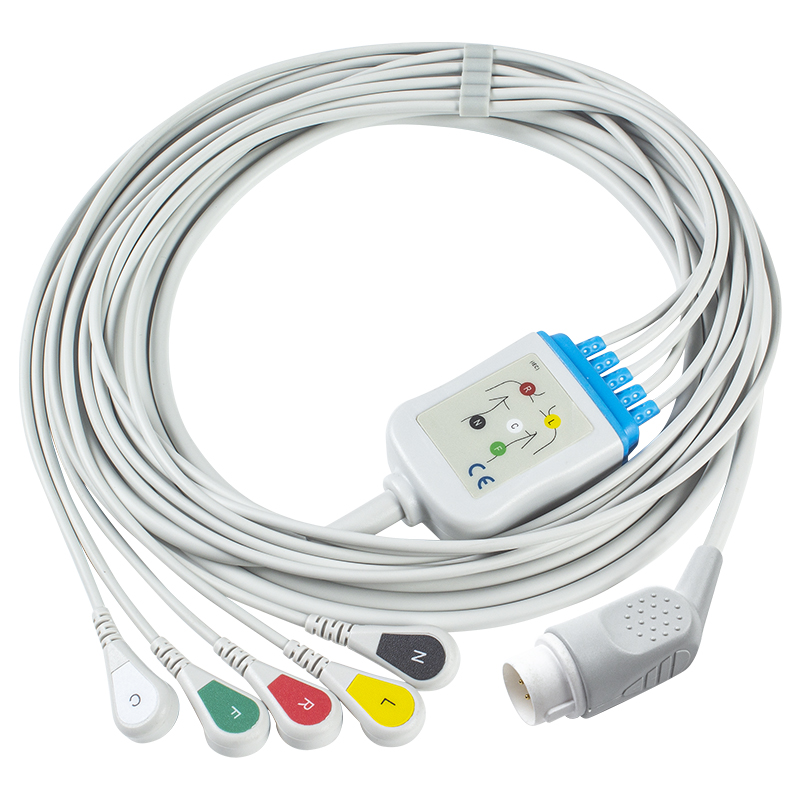

Philips One Piece ECG 5 Lead cable and leadwires 8Pin M1736A for 43100A, 43110A, 43110M, 43120A, 43200A Portable, 77000AC, 77010AC, 77020A, 77025A, 77030A

2.Compatible machine

OEM Part Number Cross References:
Manufacturer OEM Part #
AMC CB-725029R
Curbell CBM-05GA-10AS-0021
Philips M1736A

Compatibility:
Manufacturer ModelNihon Kohden 66A, ML65A, Merlin 78352C, Merlin 78354C, Merlin 78834C, Omnicare CMA
Philips 43100A, 43110A, 43110M, 43120A, 43200A Portable, 77000AC, 77010AC, 77020A, 77025A, 77030A, 77035A, 77040A, 78208A, 78210A, 78330A, 78331A, 78332A, 78333A, 78341A, 78342A, 78345A, 78346A, 78351T, 78352A/C, 78353A/B, 78354A, 78532A/B, 78534A/B/C, 78619A, 78620A, 78660A/B, 78661A/B, 78670A, 78671A, CodeMaster XL+, Codemaster 100, Codemaster XL, M1001A, M1002A, M1722A/B, M1723A/B, M2400A, M2406A, M2425A, M2475B, M3500B, MC Defibrillator, Sonos 2000/2500, Sonos/AC/AR, Viridia, tems

3. Technical Parameters

Cable: 5040TPU light grey, 2.5M Trunk cable, 1M lead cables

Connector: nylon ABS

Pin: copper plated with gold

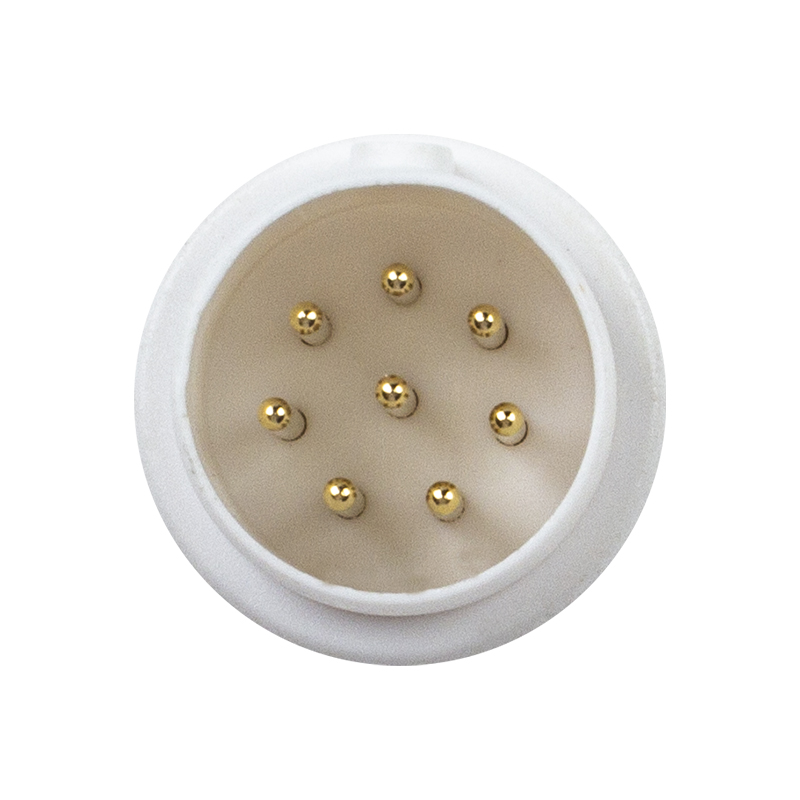

Connector: 8 Pin

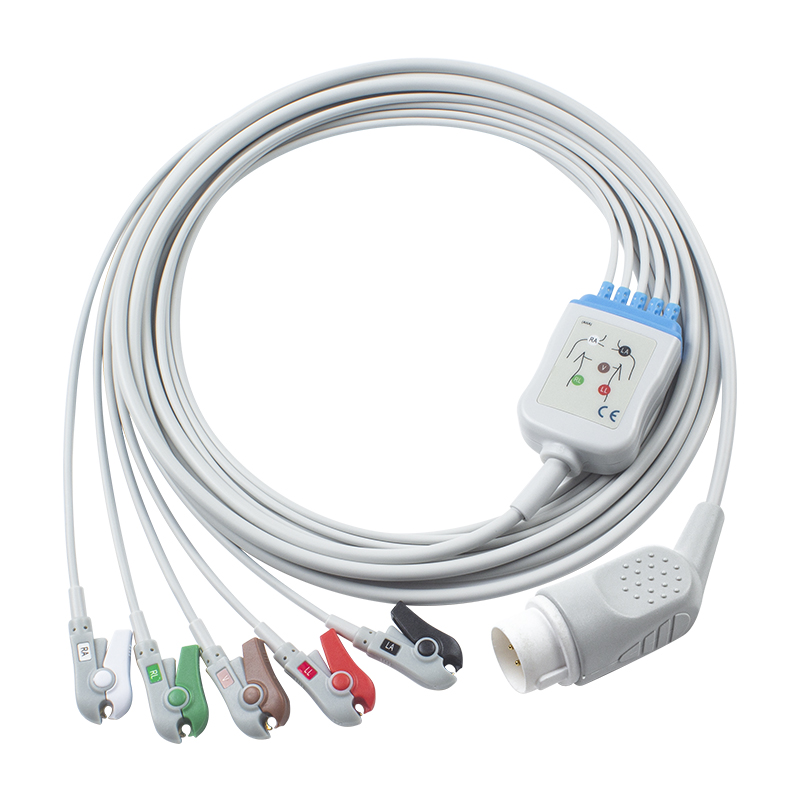

Patient End: Snap or Grabber

Standard: AHA or IEC

4.Other model

5. Delivery time
Stock order :1-2 days
Normal order 2-4 days
Batch order depends on production & order quantity and negotiation.


6. Way of Shippment and Payment

1. We ship goods by DHL/Fedex/UPS/EMS/TNT
2. We can give goods to our customers' courier agent and freight from factory to shenzhen agent is free.
3. Payment by TT/Western Union/Paypal/Alibaba/Ali pay/Wechat are acceptable.

7. Sample policy
One free same can be provided but freigth is paid by customer

8. OEM Service
If sample or design avaiable ,OEM serivce will be provided.
